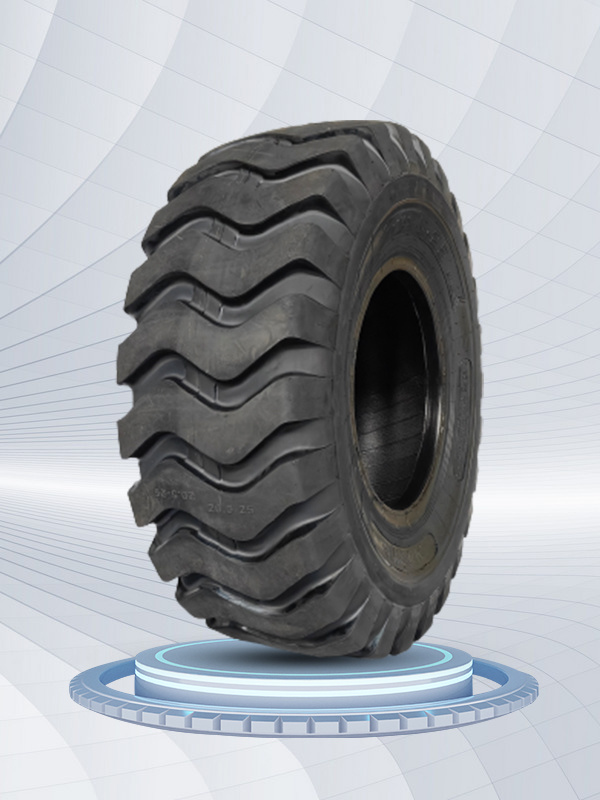

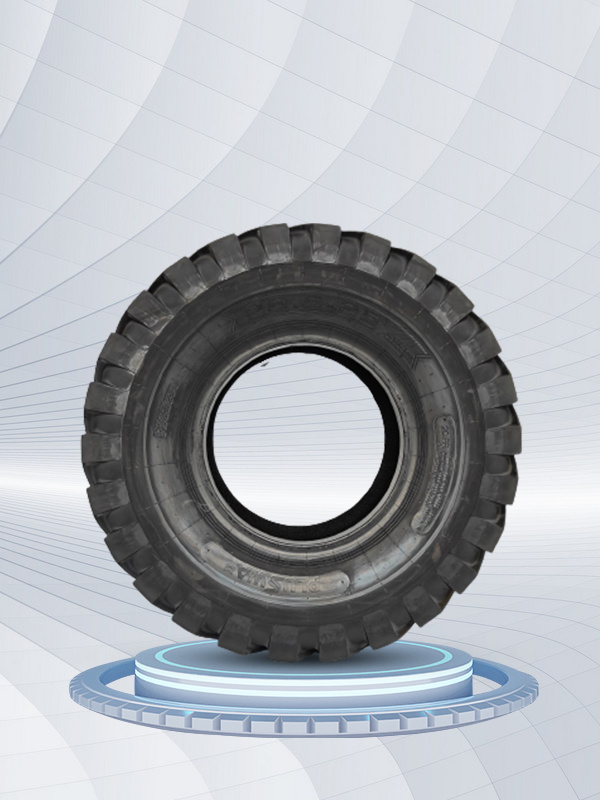

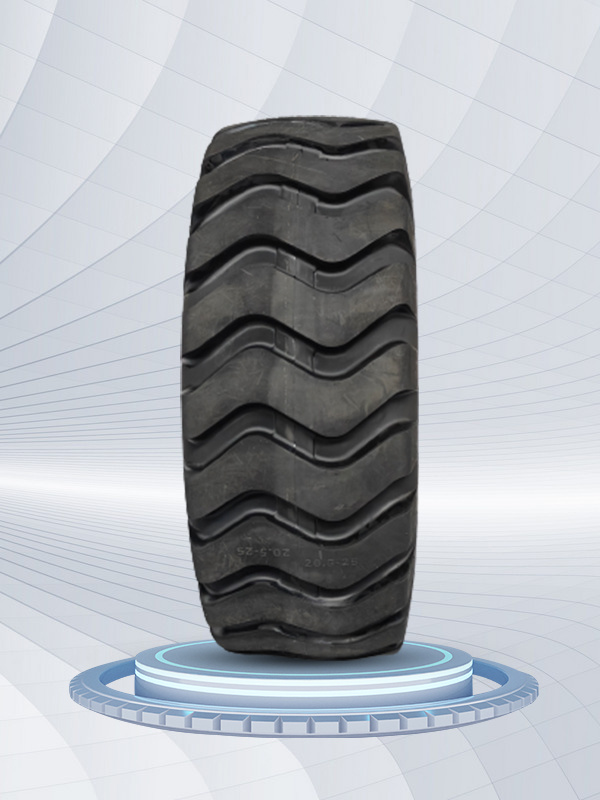

E3L3(W1)

Category:

OTR TIRES

Product Overview:

Taihao has become one of the most advanced factories in China's bias tire production equipment.Taihaoinvested about 30 milion-40 milion RMB each year to update production equipment and molds.We havethe state-of-the-art manufacturing and test facilities in the industry. All raw materials need to go through themost stringent test.

Product message →

Size	PR	Rim	Overall Diameter (mm)	Section Width (mm)	Max Load (Kg)		Inflated Pressure (kPa)		Pattern
Size	PR	Rim	Overall Diameter (mm)	Section Width (mm)	10km/h	50km/h	10km/h	50km/h	Pattern
7.50-16	10	6.00G	805	215	/	860	/	530	E3/L3(W1)
900-16	14	6.50H	890	255	/	1120	/	260	E3/L3(W1)
12.00-16	16	6.50H	840	240	/	1705	/	680	E3/L3(W1)
16/70-20	18	13	1075	410	5800	3350	550	450	E3/L3(W1)
16/70-24	14	13	1175	410	5600	3350	450	350	E3/L3(W1)
20.5/70-16	16	8.50H	1075	410	/	2850	/	350	E3/L3(W1)
15.5-25	16	12.00/1.3	1275	395	6500	3750	525	325	E3/L3(W1)
17.5-25	16	14.00/1.5	1350	445	7300	4250	475	300	E3/L3(W1/W2)
17.5-25	20	14.00/1.5	1350	445	8250	5000	575	400	E3/L3(W1/W2)
20.5-25	20	17.00/2.0	1490	520	9500	6000	450	325	E3/L3(W1/W2)
20.5-25	24	17.00/2.0	1490	520	10300	6700	525	400	E3/L3(W1/W2)
23.5-25	20	19.50/2.5	1615	595	10900	7300	375	300	E3/L3(W1/W2)
23.5-25	24	19.50/2.5	1615	595	12500	8000	475	350	E3/L3(W1/W2)
26.5-25	24	22.00/3.0	1750	675	14000	9250	400	300	E3/L3(W1/W2)
26.5-25	28	22.00/3.0	1750	675	15500	10000	475	350	E3/L3(W1/W2)
26.5-25	32	22.00/3.0	1750	675	17000	11200	550	425	E3/L3(W1/W2)
29.5-25	28	25.00/3.5	1875	750	17500	11500	425	325	E3/L3(W1/W2)
29.5-25	32	25.00/3.5	1875	750	19000	12500	490	375	E3/L3(W1)
14.00-24	20	10.00/2.0	1370	375	8500	4625	700	475	E3/L3(W1)
14.00-24	24	10.00/2.0	1370	375	9500	5150	850	575	E3/L3(W1)
14.00-24	28	10.00/2.0	1370	375	10000	5600	925	650	E3/L3(W1)
14.00-25	24	10.00/2.0	1370	375	9500	5150	850	575	E3/L3(W1)
14.00-25	28	10.00/2.0	1370	375	10000	5600	925	650	E3/L3(W1)
14.00-25	32	10.00/2.0	1370	375	10900	6150	1050	750	E3/L3(W1)
16.00-24	24	11.25/2.0	1495	430	10600	6000	650	475	E3/L3(W1)
16.00-24	28	11.25/2.0	1495	430	11500	6700	750	575	E3/L3(W1)
16.00-25	28	11.25/2.0	1495	430	11500	6700	750	575	E3/L3(W1)
18.00-25	28	13.00/2.5	1615	500	13600	8000	650	500	E3/L3(W1/W2)
18.00-25	32	13.00/2.5	1615	500	15000	8750	750	575	E3/L3(W1/W2)
18.00-25	36	13.00/2.5	1615	500	16000	9250	850	625	E3/L3(W1/W2)
18.00-25	40	13.00/2.5	1615	500	17000	9750	950	700	E3/L3(W1/W2)
